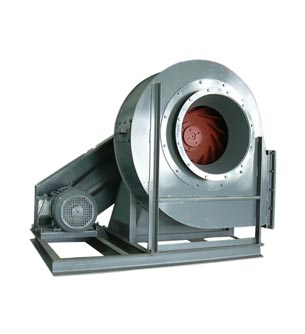

Backward Single Fan (Belt Driven) : Type AV-xxBCS-T-C,D

  • Backward Single Fan (Belt Driven) : Type AV-xxBCS-T-C,D

    Applications : - Extracting dust and particulate matter from factory air
    - Enable for all series of silo
    - Capable of moving rice,grain,seeds,etc
    - Removing dirt during cleaning processes
    Housing
    Model Model Type Material
    AV-6BCS-T Belt Drive Steel or Stainless Steel

    Wheel / Impeller
    Type of Fan Size of Fan (IN.) Material of Fan
    Backward Curved Single 36 Steel or Stainless Steel

    Motor Fan Speed Static Pressure Capacity
    HP. P. V. RPM. mm.Aq. CMM. CFM.
    50 4 380
    1610 300 450 16200
  • Backward Single Fan (Belt Driven) : Type AV-xxBCS-T-C,D

    Applications : - Extracting dust and particulate matter from factory air
    - Enable for all series of silo
    - Capable of moving rice,grain,seeds,etc
    - Removing dirt during cleaning processes
    Housing
    Model Model Type Material
    AV-6BCS-T Belt Drive Steel or Stainless Steel

    Wheel / Impeller
    Type of Fan Size of Fan (IN.) Material of Fan
    Backward Curved Single 36 Steel or Stainless Steel

    Motor Fan Speed Static Pressure Capacity
    HP. P. V. RPM. mm.Aq. CMM. CFM.
    60 4 380
    1730 340 480 17280
